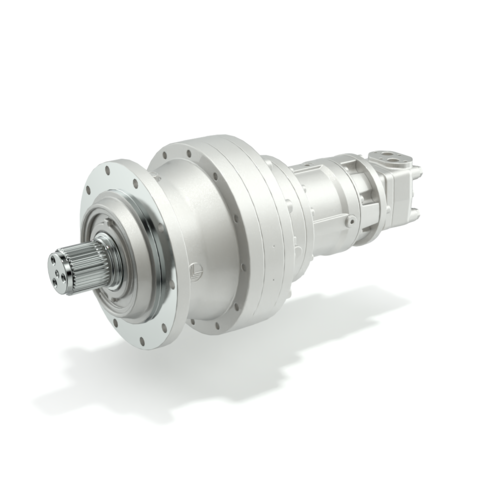

300 Series - Mobile
ID
300
The 300 series is compact and powerful. Their planetary drive train makes them the ideal choice for all severe duty applications where shock loads and impacts are more the rule than the exception.The product configuration is highly versatile, due to several options for mounting, gear layout, output shaft and motor interface. All the features are available for each of the 20 finely spaced frame sizes, with a torque range of 1,000 to 1,100,000 Nm.
Specifications
-
Torque range
1,000 ... 1,100,000 Nm -
Torque range (IU)
8,850 … 9,735,820 in-lb -
Gear ratios
3.4 ... 5,000 -
Transmissible mechanical power
up to 1,050 kW -
Output
Foot and flange mounted
Output shaft: solid with key, splined, splined hollow, hollow with shrink disc
