HDPE Series
ID
HDPE

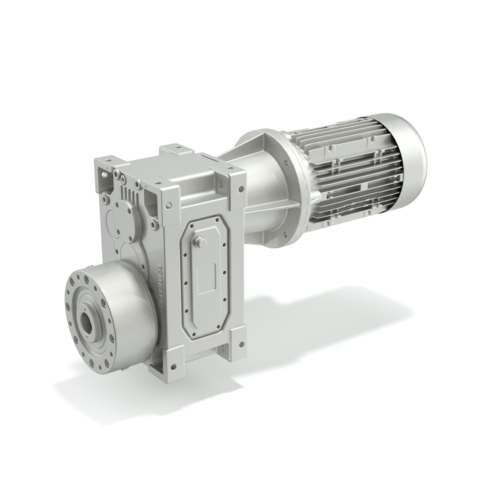

This product is dedicated to the extruder market and provides high customization of output and gear ratio combinations to fulfill our customers' needs. This gear unit provides a robust nodular cast iron gear case suitable for high loads and specific heavy duty thrust bearing sourced exclusively from primary brands. This solution also allows easy machine integration thanks to a universal mounting gearbox case (customized screw interface can be provided too) and can come with an auxiliary thermal aid device (cooling coil, oil to water heat exchanger), and oil temperature and level sensors to easily monitor its functioning.
Specifications
-
Key benefits
Easy machine integration thanks to universal mounting gearbox case (customized screw interface can also be provided)
Suitable for high loads
Adaptability to customers' requirements -
Main options
Auxiliary thermal aid device (cooling coil, oil to water heat exchanger)
Fluoroelastomer compound oil seals on I/O shaft
Oil temperature and level sensors -
Torque range
4,600 ... 77,100 Nm -
Torque range (IU)
40,713 … 382,392 in-lb -
Gear ratios
7.1... 125 -
Certifications
Certificate of compliance
Inspection certificate
ATEX -
Output
A full thrust bearing selection Cording machine to customer need and capacity
Single-keyed hollow shaft
Cording machine to UNI ISO 6604
Two-keyed hollow shaft
Splined hollow shaft
Screw mounting
Cording machine customer specification -
Motors
- IEC/NEMA standard motor flange interface
- Synchronous motor pre-arrangement according customer requirements
